QUALITY IN MOTION
Our ultra-slim profile doors are precision-manufactured using the latest technology to deliver high performance insulation, operation and aesthetics.
SPECIFICATION
Size Limits:
| Max width: | 2200mm |
| Max height: | 3000mm |
| Max pane weight: | 320kg |
Configurations:
| 1 to 6 panes | |
| Up to 3 tracks | |
| Pocket door options |
Performance:
| U-Value from 1.3 (W/m2k) | |
| Water tightness: (EN 12208:2000) Class 7A | |
| Wind resistance: EN 12210:2000) Class CS | |
| Air permeability: (EN 12207:2000) Class 4 | |
| Acoustic insulation: 41 dB Rw | |
| (Reference test: 1.23m x 1.55m. 1 sash and 1 fixed.) |
Colours:
| 150+ RAL colour options |

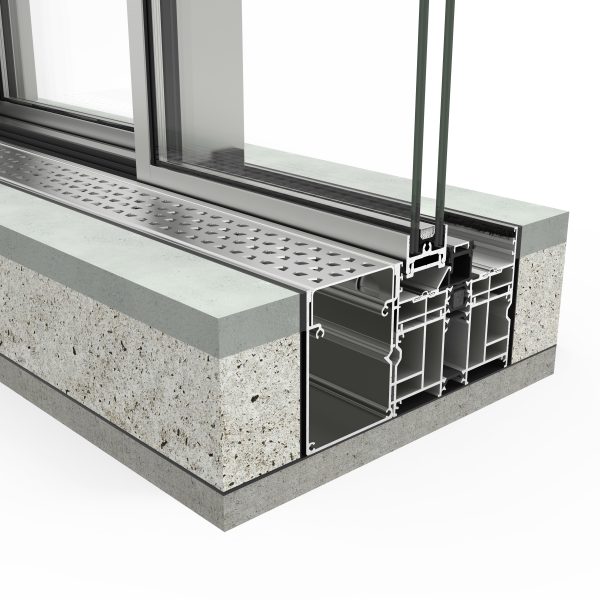

Embedding:

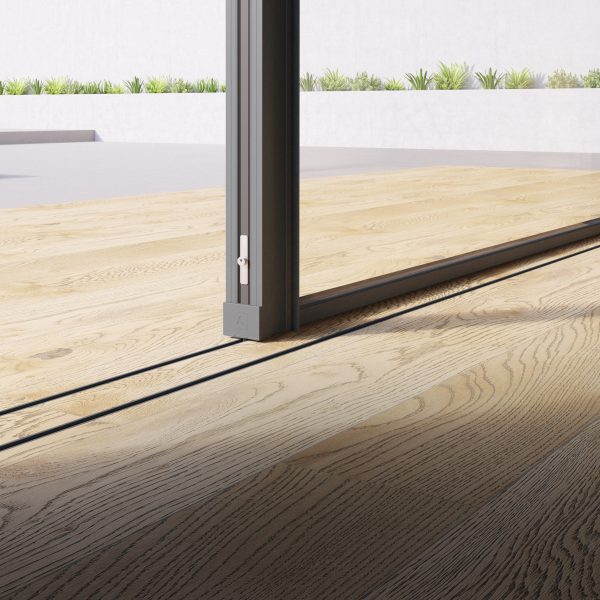

| It is possible to embed the top, bottom and side frames in the wall to minimize sightlines. |

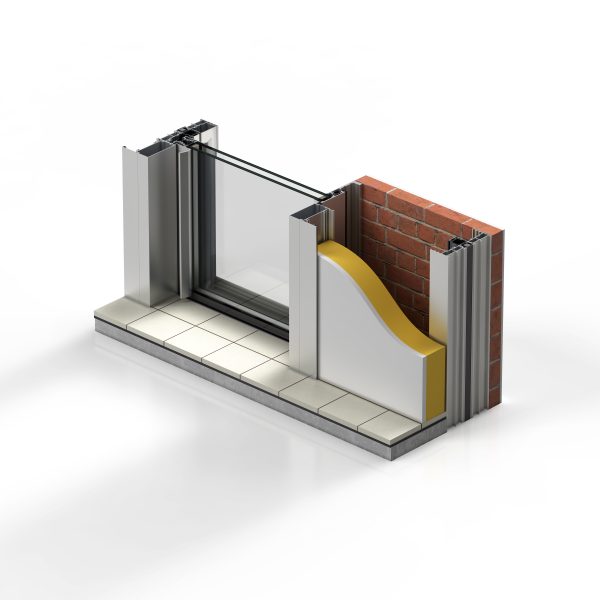

Pocket Doors:
| Units can operate as pocket doors. |
Corners:

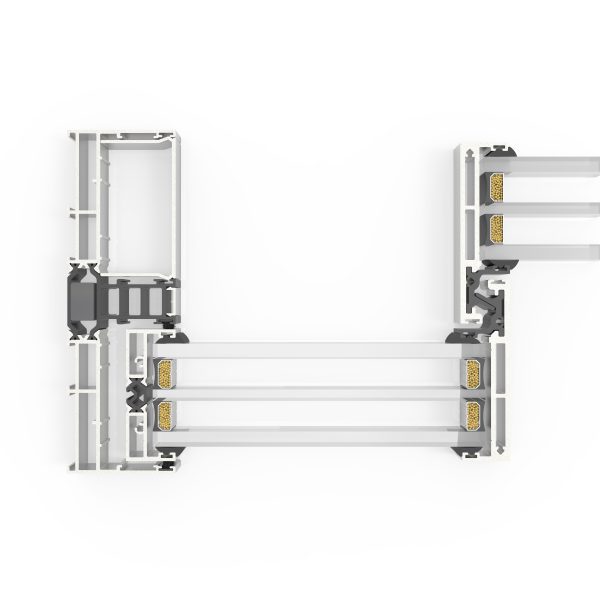

| 90° corners can be created without a mullion |

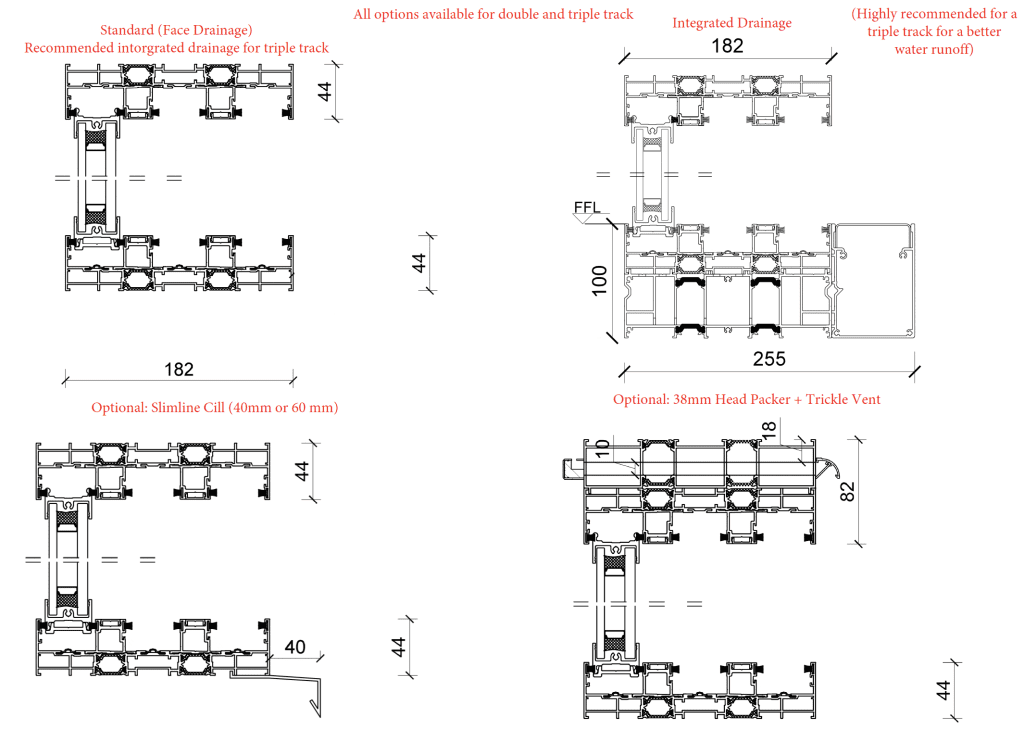

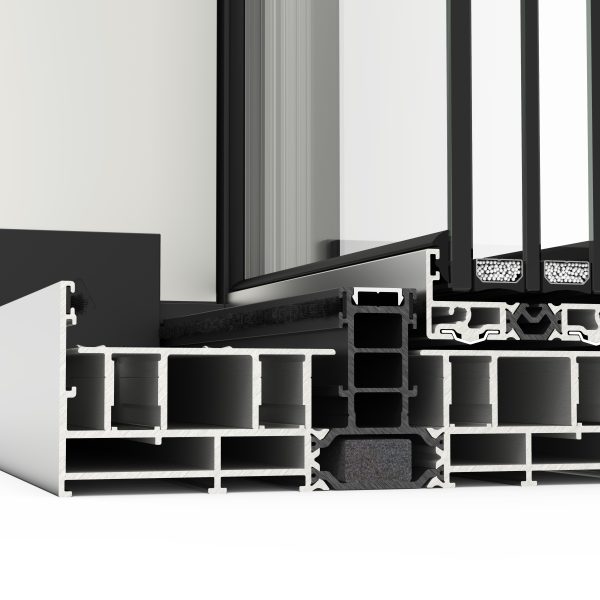

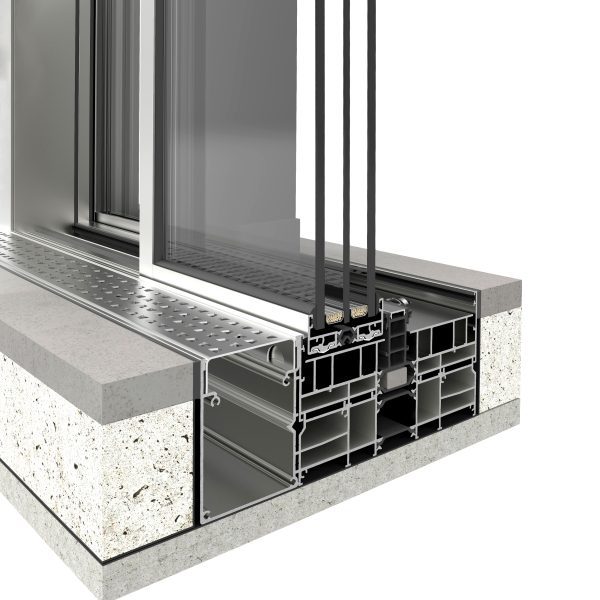

SECTIONS & DRAWINGS
